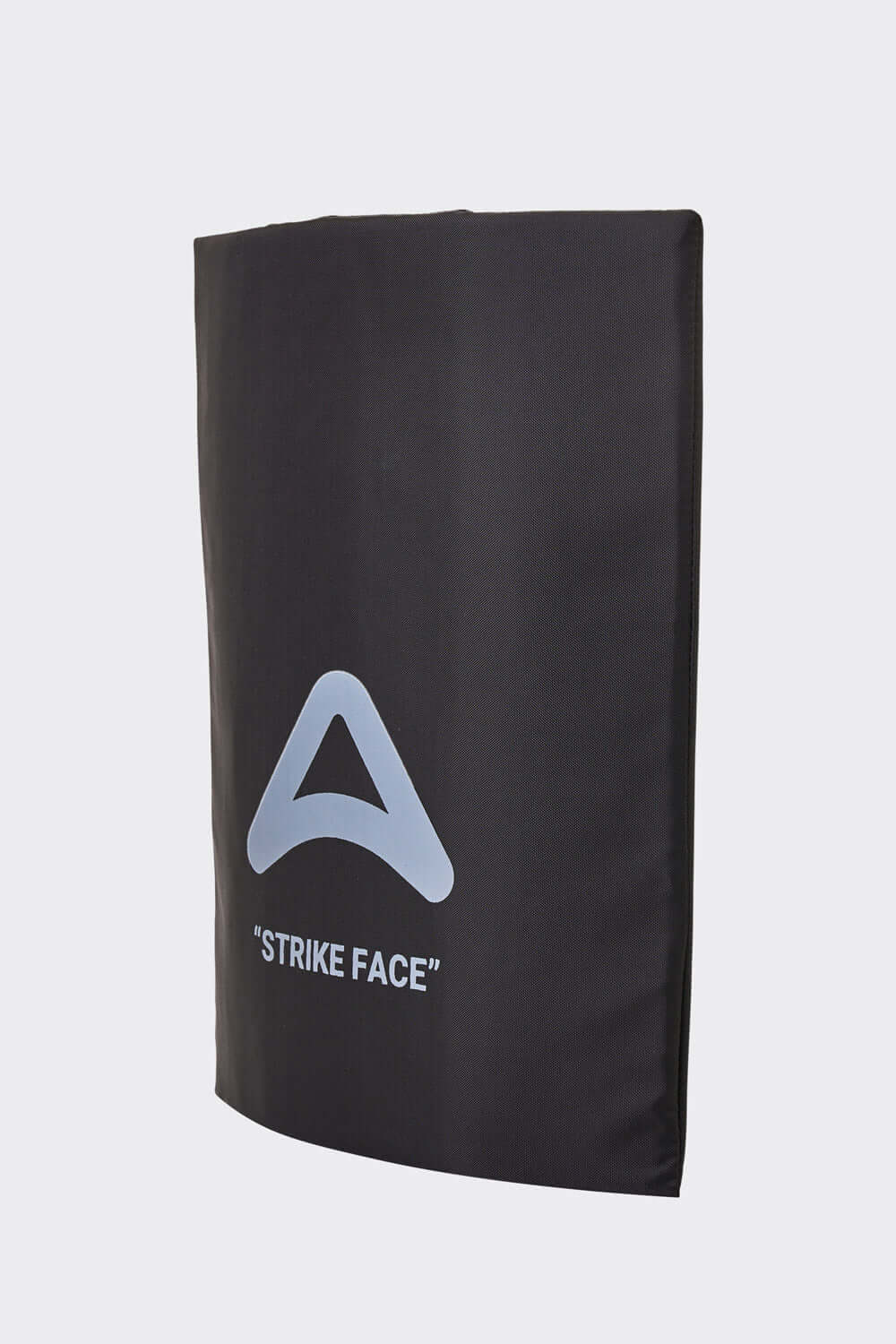

Anorak Titanium® Insert (Rectangulars)

The soft armor panels “Titanium® Insert” combine UHMWPE and UD ARAMID materials and offer the best of both worlds. They are designed in a rectangular shape (for the back) and fit all plate carriers that can accommodate the respective size of panels, adding level IIIA++ protection against handguns and submachine guns (MP5).

Designed and developed to provide maximum protection at level IIIA++ according to NIJ 0101.04 STD, the “Titanium® Insert” soft armor panels also offer protection against multiple threats such as 7.62X25mm TOKAREV and 9X18mm Mild Steel Core MAKAROV calibers as well as sharp instruments like the S1/G blade, with a maximum perforation of under 16 mm at a force of 20 joules according to NIJ 0115.00 STD.

Weighing 5.55 kg/m², only 7 mm thick, and with excellent flexibility, the “Titanium® Insert” soft armor hybrid panels are the ideal solution when maximum IIIA protection is a priority, while maintaining protection against sharp instruments!

Model: “Titanium® Insert I, II, III, IV, V, VI”
Code:
“Titanium® Insert I”: BA.4.0.4.1.14,1.20.2.13
“Titanium® Insert II”: BA.4.0.4.1.14,2.20.2.11
“Titanium® Insert III”: BA.4.0.4.1.14,3.20.2.20
“Titanium® Insert IV”: BA.4.0.4.1.14,4.20.2.19
“Titanium® Insert V”: BA.4.0.4.1.14,5.20.2.28
“Titanium® Insert VI”: BA.4.0.4.1.14,6.20.2.32

Protection level: IIIA++ according to NIJ 0101.04 STD

Certificate: From accredited laboratory, according to EN ISO/IEC 17025:2017, AITEX Spain

Thickness: 7 mm

Dimensions / Weight:
“Titanium® Insert I”: 25×30 cm / 0.435 kg
“Titanium® Insert II”: 15×15 cm / 0.13 kg
“Titanium® Insert III”: 15×20 cm / 0.175 kg

“Titanium® Insert IV”: 20×20 cm / 0.235 kg

“Titanium® Insert V”: 15×30 cm / 0.27 kg

“Titanium® Insert VI”: 15×34 cm / 0.30 kg
